ICAO CodeClassificationCategory

CJ1

L1P

L

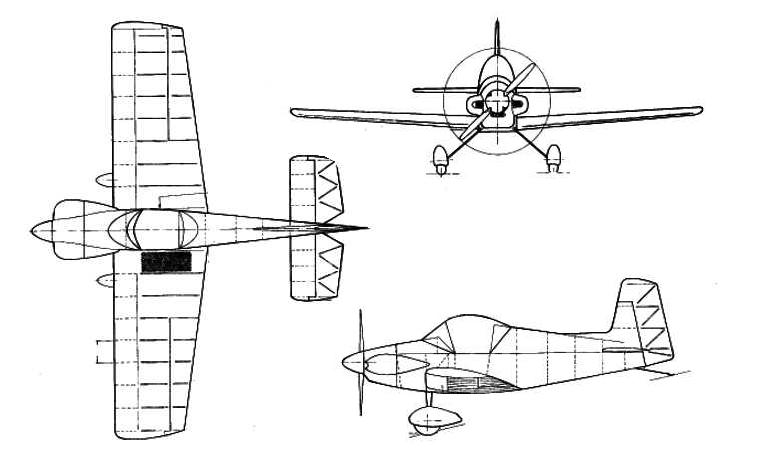

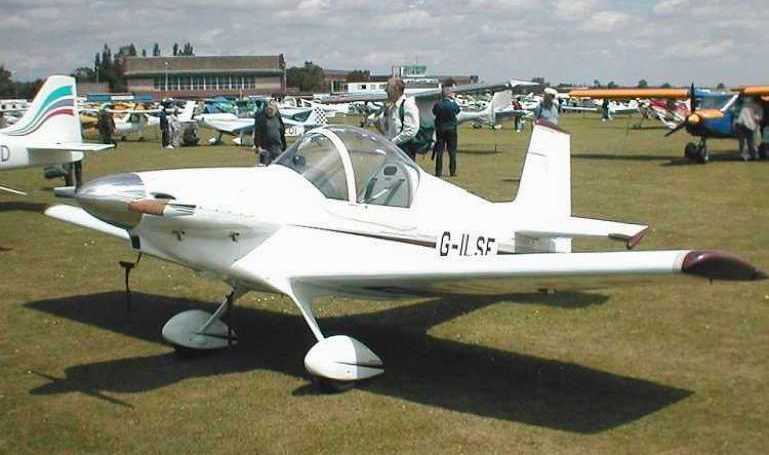

CJ1thumb image
CJ1thumb image
CJ1thumb image

Manufacturers

CORBY
CJ-1 Starlet

Technical Data

Wing Span
5.6
Length (m)
4.6
Height (m)
1.4
Take Off Distance (m)
110
Landing Distance (m)
140
Absolute Ceiling (x100ft)
145
Optimum Ceiling (x100ft)
100
Maximum Speed (kts/M)
139
Optimum Speed (kts/M)
113
Fuel Capacity (ltr)
42
MTOW (t)
0.4
Maximum Range (NM)
420
Persons On Board
Maximum Climb Rate (ft/min)
1000

Performance

Climb
LevelSpeedRate
000-100180-2151000-2000
100-200170-180500-800
200-300170-180500-800
Descent
LevelSpeedRate
000-1001801000
100-2001801000
200-3001801000
