| ICAO Code | Classification | Category |
|---|---|---|
P220 |
L1P |
L/G |
Technical Data
Wing Span (m)
6.5
Length (m)
5.5
Height (m)
1.9
MTOW (t)
0.5
Fuel Capacity (ltr)
Maximum Range (Nm)
380
Persons On Board
2
Take Off Distance (m)
200
Landing Distance (m)
220
Absolute Ceiling (x100ft)
140
Optimum Ceiling (x100ft)
100
Maximum Speed (kts/M)
113
Optimum Speed (kts/M)
103
Maximum Climb Rate (ft/min)
690
Manufacturers

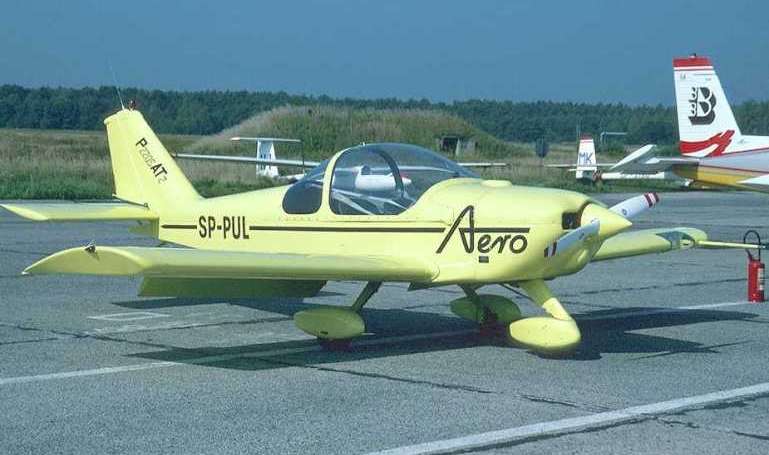

AERO (3) P-220-AT1
AERO (3) P-220-AT2
AEROTECHNIK P-220 Koala
ANTONIEWSKI P-220S-AT1
ANTONIEWSKI P-220S-AT2
ANTONIEWSKI P-220S-AT3
POTTIER P-220 Koala
