| ICAO Code | Classification | Category |
|---|---|---|
PAT4 |
L2T |
L/G |
Technical Data
Wing Span (m)
13
Length (m)
10.5
Height (m)
3.9
MTOW (t)
3.1
Fuel Capacity (ltr)
1200
Maximum Range (Nm)
950
Persons On Board
11
Take Off Distance (m)
800
Landing Distance (m)
700
Absolute Ceiling (x100ft)
282
Optimum Ceiling (x100ft)
220
Maximum Speed (kts/M)
231
Optimum Speed (kts/M)
173
Maximum Climb Rate (ft/min)
1300

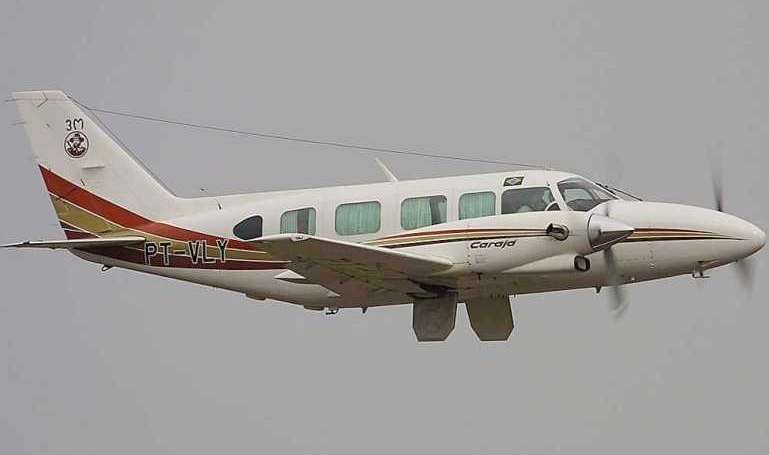

Manufacturers
NEIVA NE-821 Caraja
PIPER PA-31T3-500 T-1040
SCHAFER Comanchero 500
